Quality Standard or Non
Basic Info.
Sample | Available |
Main Using Purpose | Carbide Body for Drill Bits/ Endmills / Reamers |
Port | Shenzhen |
Grades | K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2 |
Surface Finishing | Chemical Coating and Physical Coating |
Advantage | High Wear Resistance |
Grain Sizes Selection | Ultra Fine, Fine, Medium, Coarse |
Wc+Co Powder | 100% Virgin Material |
Transport Package | Standard Packing for Export |
Specification | WC+Co Powder |
Trademark | Laser mark with your own brand available |
Origin | Zhuzhou City, Hunan, China |
Product Description
Advantage of Tungsten Carbide CNC Carbide Inserts: -High quality standard: Each piece was done by HIP sintering, provide 30% more on bending strength, much more stronger than normal quality, it will be strong enough even meet heavy impact.-Better wear resistance, provide you longer tool life by using our tungsten carbide knife. The grains inside is more even and close. -Professional supplier for customized parts, our teams will help you and make your design to become real product, which perfect match your need.-Quality guarantee: All compositon and mechnical properties datas recorded and quality certificate be sent with our goods.
Eastern Carbide provide the top quality tungsten carbide insert for wood and metal working which is equal to German quality, save your cost and time.
Grade | Coating composition | Coating characteristics | Application recommendation | ISO | |
Coating method and color | Composition and thickness | ||||
ES8115 | CVD Black and yellow two-colors | TiN+MT -TiCN+Al2O3 +TiN Thick | Thick TiCN and thick Al2O3 combined with perfect coating post-treatment, the coating is both aesthetically pleasing and the wear resistance of the coating is greatly improved. | It is used to stabilize the turning environment and pursue high wear resistance. When processing ordinary steel, the line speed can reach 350m/min or more when the cooling is good. | P10~P20 |
ES8125 | CVD Black and yellow two-colors | TiN+MT -TiCN+Al2O3 +TiN Thick | Thick TiCN and thick Al2O3 combined with perfect coating post-treatment, the coating is both aesthetically pleasing and the wear resistance of the coating is greatly improved. | The most versatile preferred grade for general steel turning, from finishing to roughing, from low to high speeds, has a strong overall performance and is also suitable for general intermittent turning. | P15~P30 |
ES8123 | CVD Yellow | TiN+MT -TiCN+Al2O3 +TiN Thick | The medium-thick TiCN is combined with the thinner alumina to achieve both toughness and wear resistance. | For grooving and cutting turning in general steel at higher speeds. | P15~P30 |
ES6105 | CVD Black | TiN+MT -TiCN+Al2O3 +TiN Thick | The thick TiCN plus thick Al2O3 and post-coating finish provide excellent wear resistance and toughness. Combined with the corresponding substrate, it is more suitable for cast iron finishing. | The most wearable material grade for turning gray iron and ductile iron; It can also be used for dry turning of high hardness and wear resistant steel parts. | K05~K10 |
ES6115 | CVD Black | TiN+MT -TiCN+Al2O3 +TiN Thick | The thick TiCN plus ultra-thick Al2O3 and post-coating finish provide excellent wear resistance and toughness. Combined with the corresponding substrate, it has a wide range of versatility. | The preferred grade for turning gray iron and ductile iron has good comprehensive performance and is also suitable for general intermittent processing. It can be used in low speed roughing applications where hardened steel and high strength steel are used. | K10~K20 |
ES5125 | PVD Gray-black | AlTiN | Accurate and unique coating material formula; innovative high-energy coating process; fine and smooth coating without droplets, low friction coefficient, high oxidation temperature and high nano hardness. The thin coating thickness guarantees the sharpness of the cutting edge. | Special grade for thread turning for various materials such as steel, stainless steel and cast iron | P10~P25 M10~M25 K10~K25 |
ES7125 | PVD Gray-black | AlTiN | Accurate and unique coating material formula; innovative high-energy coating process; fine and smooth coating without droplets, low friction coefficient, high oxidation temperature and high nano hardness. Different coating thicknesses match different edge requirements to ensure optimum overall performance for all design geometries. | The preferred grade for stainless steel grooving and cutting; it can also meet the requirements of medium and low speed grooving and cutting of steel and cast iron. | P15~P30 M15~M30 K15~K30 |
Regular types of CNC inserts from Zhuzhou Eastern Carbide:

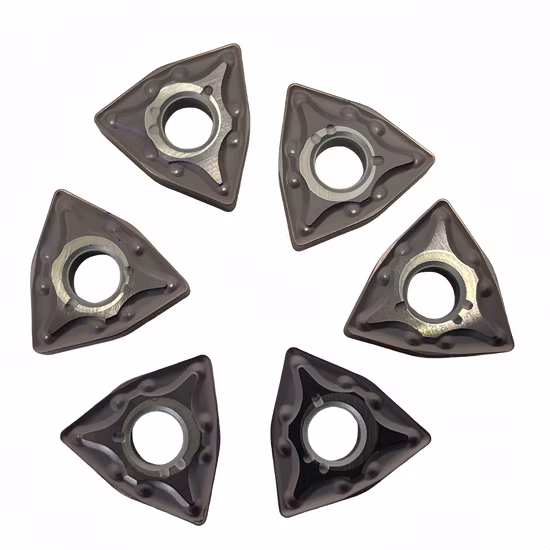

Detailed Photos for carbide insert VNMG, TNMG, WNMG:

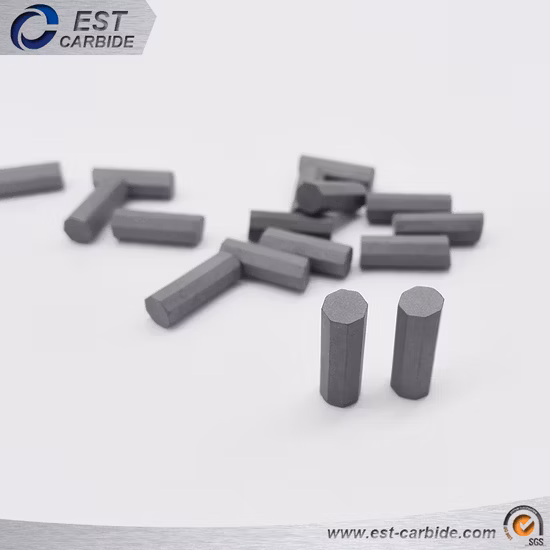

Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.
Packing:A. Standard packing 1).Plastic boxes with foam inside and carton outside. 2).Paper boxes with foam inside and carton outside. 3).Inner boxes/packing material inside and plywood box outside (for heavy product). B. Customized packing available: We can do special packing based on client's requirements..
